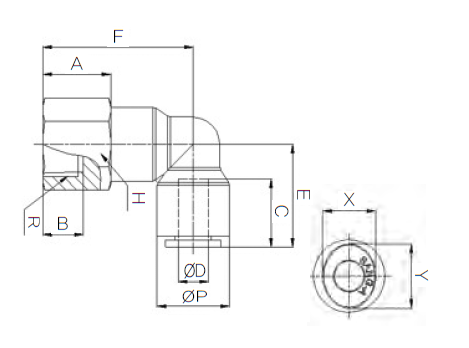

HAAKSE OPSCHROEF PIF Ø04-G1/4 PVDF

MODEL

ØD

ØP

A

B

C

E

F

R

H

X

Y

CR-PLF 04G01

4

11.8

10

9

14.5

18

24.4

PF 1/8

13

8.6

10.8

CR-PLF 04G02

4

11.8

14

12

14.5

18

28.4

PF 1/4

16

8.6

10.8

CR-PLF 06G01

6

14.7

10

9

15.6

20.6

26.7

PF 1/8

15

11

13

CR-PLF 06G02

6

14.7

14

12

15.6

20.6

30.7

PF 1/4

16

11

13

CR-PLF 08G01

8

16.7

10

9

17.3

23.1

29

PF 1/8

17

13

15

CR-PLF 08G02

8

16.7

14

12

17.3

23.1

33

PF 1/4

17

13

15

CR-PLF 08G03

8

16.7

15

13

17.3

23.1

34

PF 3/8

19

13

15

CR-PLF 10G02

10

19.3

14

12

19.4

25.8

34.8

PF 1/4

20

16

18.5

CR-PLF 10G03

10

19.3

15

13

19.4

25.8

35.8

PF 3/8

20

16

18.5

CR-PLF 10G04

10

19.3

19

16

19.4

25.8

39.8

PF 1/2

24

16

18.5

CR-PLF 12G02

12

23.2

14

12

22.4

30.9

39

PF 1/4

24

19.5

22.5

CR-PLF 12G03

12

23.2

15

13

22.4

30.9

40

PF 3/8

24

19.5

22.5

CR-PLF 12G04

12

23.2

19

16

22.4

30.9

44

PF 1/2

24

19.5

22.5
