L-OPSCHROEF PIF Ø06-R1/4 PVDF

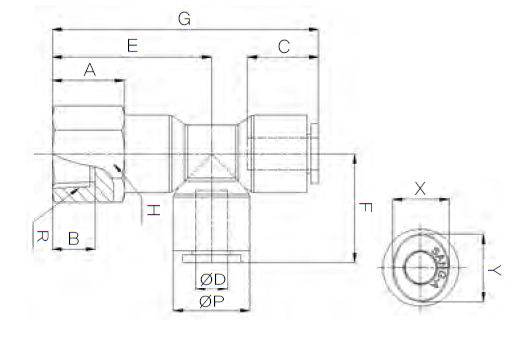

MODEL

ØD

ØP

A

B

C

E

F

G

R

H

X

Y

CR-PSTF 04M5

4

11.8

8

5

14.5

22.4

18

40.4

M5

13

8.6

10.8

CR-PSTF 0401

4

11.8

11

9

14.5

25.4

18

43.4

PT 1/8

13

8.6

10.8

CR-PSTF 0402

4

11.8

14

12

14.5

28.4

18

46.4

PT 1/4

16

8.6

10.8

CR-PSTF 06M5

6

14.7

8

5

15.6

24.7

20.6

45.3

M5

15

11

13

CR-PSTF 0601

6

14.7

11

9

15.6

27.7

20.6

48.3

PT 1/8

15

11

13

CR-PSTF 0602

6

14.7

14

12

15.6

30.7

20.6

51.3

PT 1/4

16

11

13

CR-PSTF 0801

8

16.7

10

9

17.3

29

23.1

52.1

PT 1/8

17

13

15

CR-PSTF 0802

8

16.7

14

12

17.3

33

23.1

56.1

PT 1/4

17

13

15

CR-PSTF 0803

8

16.7

15

13

17.3

34

23.1

57.1

PT 3/8

19

13

15

CR-PSTF 1002

10

19.3

14

12

19.4

34.8

25.8

60.6

PT 1/4

20

16

18.5

CR-PSTF 1003

10

19.3

15

13

19.4

35.8

25.8

61.6

PT 3/8

20

16

18.5

CR-PSTF 1004

10

19.3

19

16

19.4

39.8

25.8

65.6

PT 1/2

24

16

18.5

CR-PSTF 1202

12

23.2

14

12

22.4

39

30.9

69.9

PT 1/4

24

19.5

22.5

CR-PSTF 1203

12

23.2

15

13

22.4

40

30.9

70.9

PT 3/8

24

19.5

22.5

CR-PSTF 1204

12

23.2

19

16

22.4

44

30.9

74.9

PT 1/2

24

19.5

22.5
