T-VERLOOP PIF Ø06-Ø04 PVDF
De push-in fitting heeft een PVDF body, de draad is uitgevoerd in RVS316.

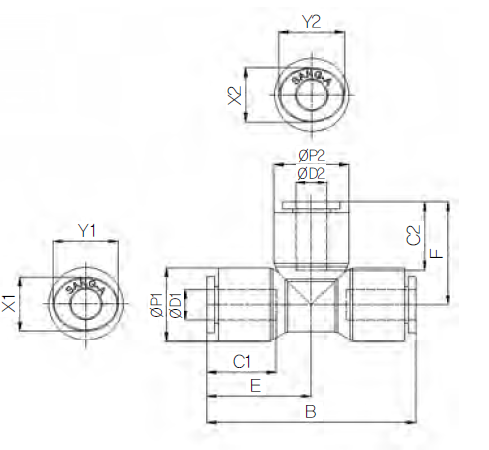

Afmetingen
|
MODEL |
ØD1 |
ØD2 |
ØP1 |
ØP2 |
B |
C1 |
C2 |
E |
F |
X1 |
X2 |
Y1 |
Y2 |
|
CR-PUG 0604 |
6 |
4 |
14.7 |
11.8 |
41.2 |
15.6 |
14.5 |
20.6 |
19.6 |
11 |
8.6 |
13 |
10.8 |
|
CR-PUG 0806 |
8 |
6 |
16.7 |
14.7 |
46.2 |
17.3 |
15.6 |
23.1 |
21.9 |
13 |
11 |
15 |
13 |
|
CR-PUG 1008 |
10 |
8 |
19.3 |
16.7 |
51.6 |
19.4 |
17.3 |
25.8 |
25.1 |
16 |
13 |
18.5 |
15 |
|
CR-PUG 1210 |
12 |
10 |
23.2 |
19.3 |
61.8 |
22.4 |
19.4 |
30.9 |
27.5 |
19.5 |
16 |
22.5 |
18.5 |
Specificaties
- Diameter 16mm
- Diameter 24mm
- EAN Code8719426568385
- FabrikantSang-A
- MateriaalPVDF
