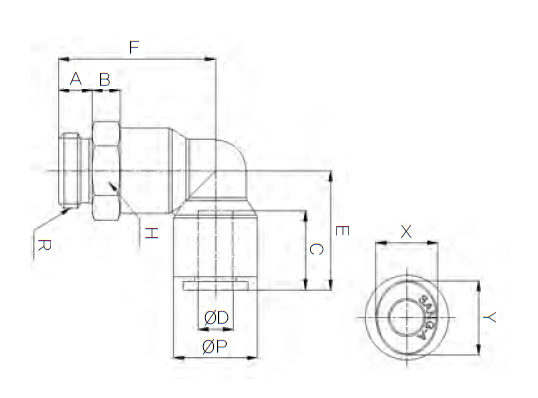

HAAKSE INSCHR. PIF Ø04-G1/4 PPSU

MODEL

ØD

ØP

A

B

C

E

F

R

H

X

Y

HR-PL 04G01

4

11.9

5.3

8

14.9

18.5

27.8

PF 1/8

13

8.6

10.8

HR-PL 04G02

4

11.9

6

8

14.9

18.5

28.5

PF 1/4

17

8.6

10.8

HR-PL 06G01

6

14.9

5.3

8

15.7

21

30.3

PF 1/8

15

11

13

HR-PL 06G02

6

14.9

6

8

15.7

21

31

PF 1/4

17

11

13

HR-PL 08G01

8

16.9

5.3

8

17.8

23.6

32.3

PF 1/8

17

13

15

HR-PL 08G02

8

16.9

6

8

17.8

23.6

33

PF 1/4

17

13

15

HR-PL 08G03

8

16.9

7

8

17.8

23.6

34

PF 3/8

20

13

15

HR-PL 10G02

10

19.5

6

8

19.8

26.4

35

PF 1/4

20

16

18.5

HR-PL 10G03

10

19.5

7

8

19.8

26.4

36

PF 3/8

20

16

18.5

HR-PL 10G04

10

19.5

8.5

8

19.8

26.4

37.5

PF 1/2

24

16

18.5

HR-PL 12G02

12

23.5

6

8

22.4

30.9

39

PF 1/4

24

19.5

22.5

HR-PL 12G03

12

23.5

7

8

22.4

30.9

40

PF 3/8

24

19.5

22.5

HR-PL 12G04

12

23.5

8.5

8

22.4

30.9

41.5

PF 1/2

24

19.5

22.5
